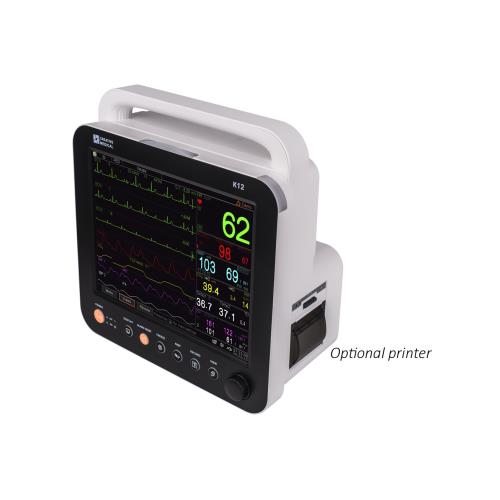

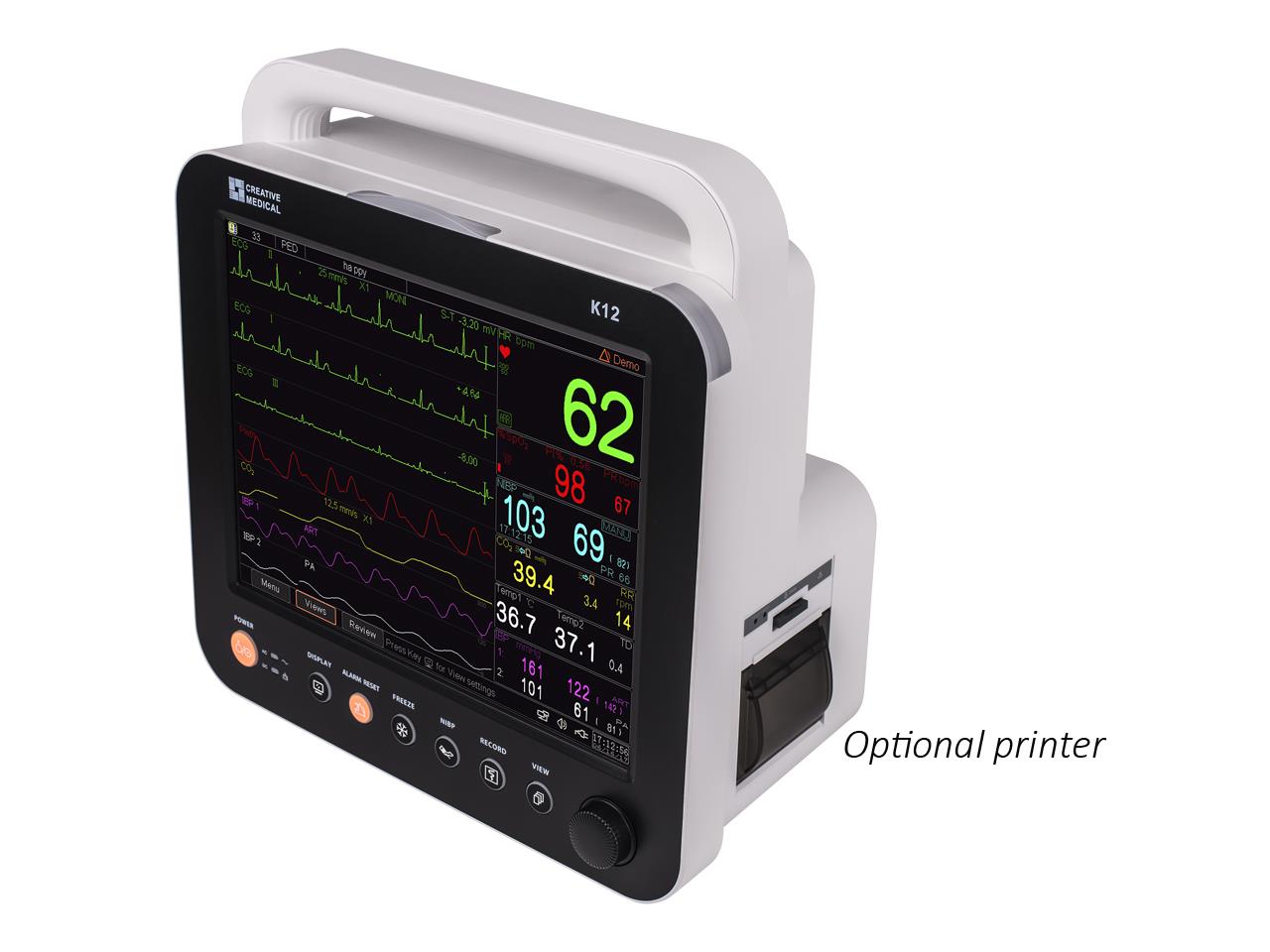

K12 multiparameter monitor

ECG, RESP, TEMP, NIBP, SpO2

K12 multiparameter monitor

ECG, RESP, TEMP, NIBP, SpO2

General information | Technical information | Standard equipment | Compatible with |

Code:	110970
Brand:	GIMAlink
Unit:	1 pc.
Availability:

heart_plus

1,102.50 €

(including VAT)

Price without VAT 1,050.00 €

info General information

assignment Technical information

work Standard equipment

list Compatible with

General information

Multi-functional patient monitors, designed for monitoring the vital physiological signs of adult, pediatric and neonate patients.

With the functions of real-time recording and displaying parameters, such as ECG, heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO₂), respiration (RESP), temperature (TEMP), it allows comprehensive analysis of patient's physiological conditions.

Ergonomic design with intuitive user interface
USB socket for data transfer and software upgrade
9 traces on-screen waveforms
Windows style display view, easy to operate
Visual and audible alarm for physiological and technical alarms
Large capacity storage
Suitable for use with original Nellcor sensors
Protection against defibrillator discharge, resistance against the interference from electro-surgical unit; cardiac pacemaker pulse detection and inhibition.
360° degree visible indicator with 3 level alarm.
Lithium battery up to 2.5 hours continuous monitoring.

Internal software: GB, DE, FR, PT, ES, IT, PL, TR, RU.

PC software GB, IT, ES. Compatible with Windows XP, 7, 8,10, 11.

Without connection DC 12-18 V that allows use on veichles (eg: ambulance).

Compatible with

• 5-leads ECG cable for K12 and K15 monitors

• Disposable TNT electordes 50 mm - 50 pcs

• Extension cable for SpO2 probes for K12 and K15 monitors

• Li.Ion rechargeable battery for K12 and K15 monitors - spare part

• NIBP cuff for K12 and K15 monitors - newborn

• Reusable SpO2 probe for K12, K15 monitor and new Oxy 110 oxymeter - adult

• Reusable SpO2 probe for K12, K15 monitor and Oxy 110 oxymeter - pediatric

• Reusable SpO2 probe for K12, K15 monitor and oxymeter Oxy 110 - newborn

• Trolley for multiparameter monitor UP7000, K12 and K15 - adjustable

• VITAL multi-parameter monitor line printer (new version), K12 and K15

Standard equipment

Adult SpO₂ probe
NIBP adult cuff
SpO₂ extension cable
ECG cable 5 leads with round connector
Skin temperature probe
Power supply cable
Re-chargeable lithium battery
Dust-protective cover
Manual: GB, FR, IT, ES, PL, RU

Printer not included. If ordered together with the monitor, the installation is carried out by our technician; in case it is ordered later, the installation requires an external technician (to be paid by the customer).

Technical information

ECG

Input dynamic range: ±(0.5~5 mVp)
Differential input impedance: =10 mO
Bandwidth:
- 0.05~150 Hz (diagnostic)
- 0.5~40 Hz (monitoring)
- 1~20 Hz (operation)
CMRR:
- =90 db (diagnostic)
- =105 db (monitoring & operation)
Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto
Sweeping speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
HR measuring range: 15~350 bpm ±1% or ±2 bpm, whichever is greater
Pacemaker pulse detection and rejection function

RESP

Measuring range: 0~120 rpm ±5% or ±2 rpm, whichever is greater

TEMP

Measuring range: 21.0~50.0 °C ±0.2 °C from 25~45 °C

NIBP

Technique: oscillometric method
Typical measurement time: <30 seconds (adult cuff)
NIBP measuring range SYS:
- 40~275 mmHg (Adult)
- 40~200 mmHg (Pediatric)
- 40~135 mmHg (Neonate)
NIBP measuring range DIA:
- 10~210 mmHg (Adult)
- 10~150 mmHg (Pediatric)
- 10~95 mmHg (Neonate)
NIBP measuring range MAP:
- 20~230 mmHg (Adult)
- 20~165 mmHg (Pediatric)
- 20~110 mmHg (Neonate)
NIBP measuring accuracy:
- Mean difference: ±5 mmHg
- Standard deviation: 8 mmHg
NIBP measurement mode: Manual, Auto, Stat, Multi-cycle mode
Auto measuring intervals: 1-480 min
