ECG Holter system includes ECG recorder and software connectable to a computer system or laser printer.
The recorder has built-in flash storage media to increase memory capacity. The sampling rate of 1,000 sampling/sec has improved the quality of waveform.
Accuracy of the system is ensured by AHA and MIT data.
Features:• windows software interface
• quick and accurate analyzing system
• Compatible up to Windows 7, 8, 10 and 11
• Software: EN, IT
• special editing system of R point
• perfect analysis function of ST segment
• analysis function of T wave of all channels and T wave trend graph
• review of ECG trend graph
• analysis system of HR variability, providing regular SDNN, SDANN, RMSSD, LF, HF, time domain and frequency domain
• QT analysis and QT trend graph
• acquire pacing ECG directly without separate channel; Also have the functions of VCG, VLP, TVCG, HRT, TWA. (option)

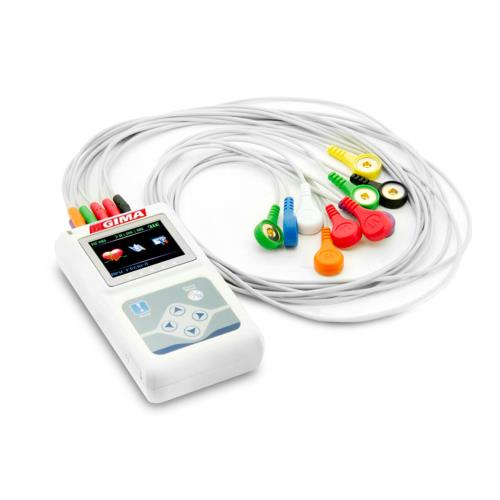

Recorder:
• 12 channel Synchronized ECG Acquisition
• small ECG recorder with OLED colour screen to display real time ECG waveform and review storage data.
• capacity up to 2G
• selectable sampling rate, 200, 500, 1000 sampling/sec
• sampling accuracy: 12 bit
• built-in FLASH storage media, to prevent the flash card from damage due to repeated insertion and pull out
• USB interface
• operating system: Windows 98, 2000, XP, 7
