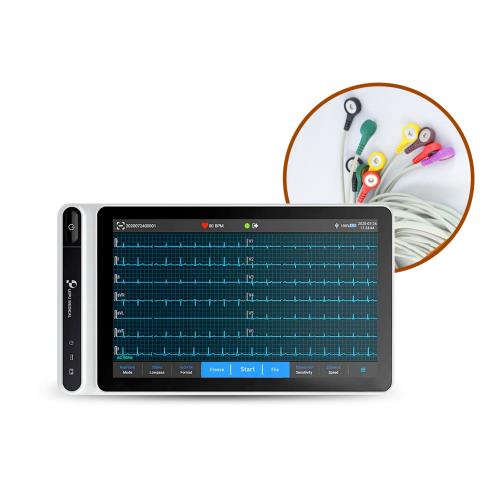

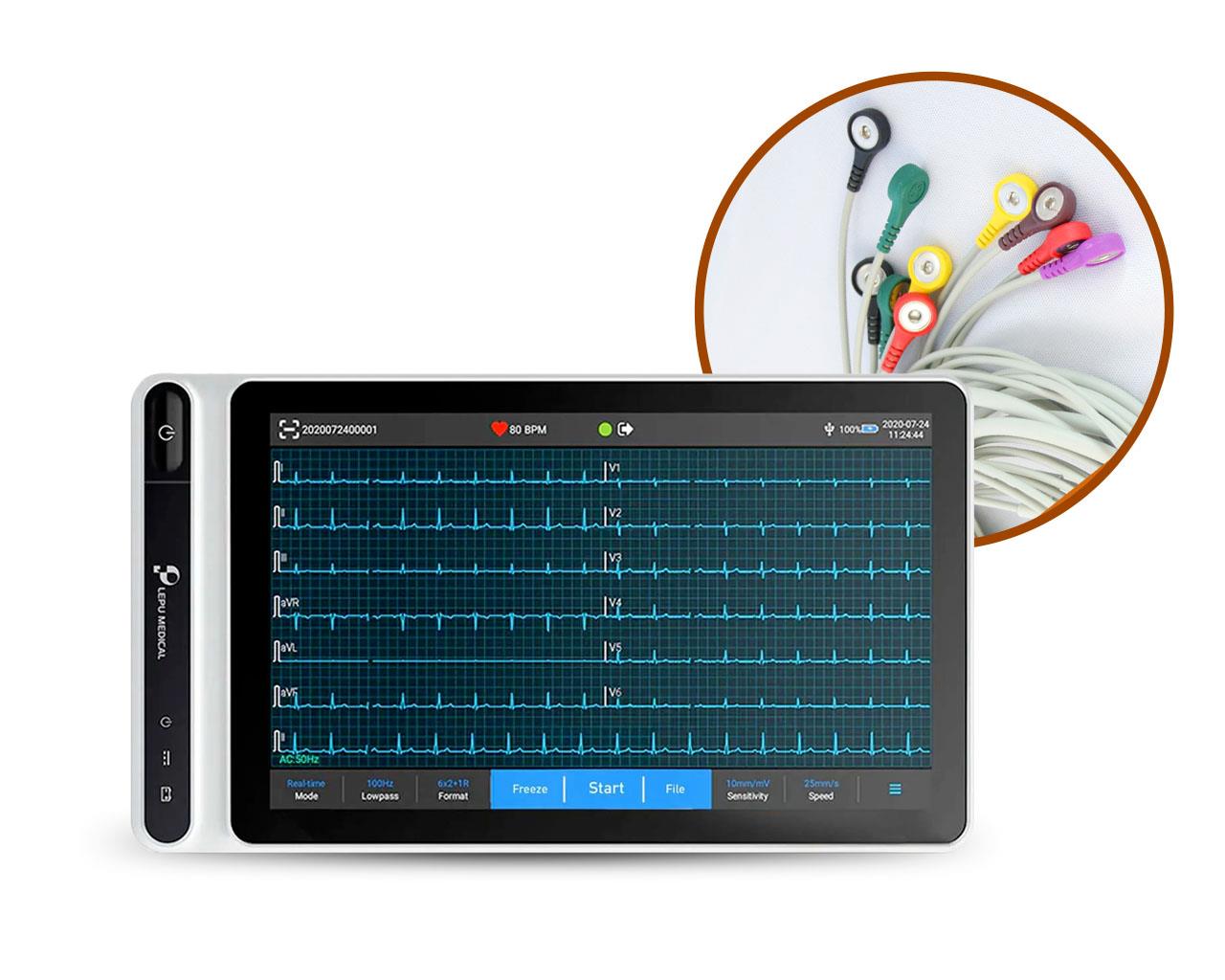

Tablet NeoECG S120 snap plug

12 lead with Glasgow algorithm

Tablet NeoECG S120 snap plug

12 lead with Glasgow algorithm

General information | Technical information | Standard equipment | Compatible with |
Code:
Manufacturer code
Brand: LEPU MEDICALlink
Unit:
Availability:
heart_plus

1,312.50 €

(including VAT)
Price without VAT 1,250.00 €
info General information
assignment Technical information
work Standard equipment
list Compatible with

General information

Light and portable ECG tablet for acquisition and displaying of 9/12 lead waveform, as well as heart rate detection. 7” high resolution colour touch screen, easy to operate. This version comes with a snap connector ECG patient cable.

It can store, preview, review, edit and upload patient data through wireless transmission of ECG data via WiFi and mobile networks. Patient data can be exported to USB flash drive via USB connector.

Specifics:
  • Glasgow algorithm
  • 4 sampling modes: pre-sampling, real-time sampling, periodic sampling and trigger sampling
  • automatic pacing detection and marking
  • auto RR analysis, HRV, medicine test, ECG event mode
  • files in formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP
  • freezing  ECG waveform on the screen
  • virtual keybord and barcode scanning to insert patient information
  • external DC power supply and built-in rechargeable battery
  • multilingual selectable software: GB, FR, IT, ES, PT, DE, GR, PL.

Compatible with

• Carrying bag for ECG Tablet NeoECG

• ECG cable 10 leads with 4 mm connector Biocare, Edan, Nihon compatible

• ECG cable 10 leads with snap connector Biocare, Edan, Nihon compatible

• Rechargeable spare battery for ECG Tablet NeoECG

• Thermal printer for Tablet ECG NeoECG - 3 channels bluetooth

Standard equipment

  • 1 ECG cable (IEC, snap connetcor)
  • 10 dsposable adult ECG electrodes
  • 1 lithium rechargeable battery
  • 1 power supply
  • Multilingual manual: GB, IT



Technical information

  • ECG leads: 9,12 synchronous acquisition
  • A/D resolution: 24 bits
  • Heart rate range: 30 bpm-300bpm ± 1 Input circuit current: = 10 nA
  • Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, less than ± 5% error
  • Printing speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, less than ± 3% error
  • Sampling rate: 32000 samples/sec
  • Filters: AC (50-60 Hz, off), EMG (25-35-45 Hz off), ADS (0.01-0.05-0.32-0.67 Hz), Low pass filter (75-100-150-300 Hz off)
  • Frequency response: 0.01-350 Hz (+ 0.4-3.0 db)
  • Minimum delectable signal: 20 µVp-p
  • Amplitude quantisation: 0.95 µV/LSB
  • Recovery time after discharge: < 10 s
  • Display: 7" colour touch screen
  • Size - weight: 19.7×11.2× h 2.6 cm - 0.8 kg
Electrical
  • Internal noise: = 12.5 µV
  • Input impedance: = 100 MO (10 Hz)
  • Calibration voltage: 1mV ± 2 %
  • Depolarization voltage: ± 900 mV, ± 5 %
  • Commode mode rejection: = 140 dB (AC filter on)
  • Commode mode rejection: = 120 dB (AC filter off)
