ECG Contec 1212G with 10.1” display

12 leads, 3/6/12 channels, auto-interpretation, software included

ECG Contec 1212G with 10.1” display

12 leads, 3/6/12 channels, auto-interpretation, software included

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Brand: CONTEClink
Unit:
Availability:
heart_plus

1,165.50 €

(including VAT)
Price without VAT 1,110.00 €
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

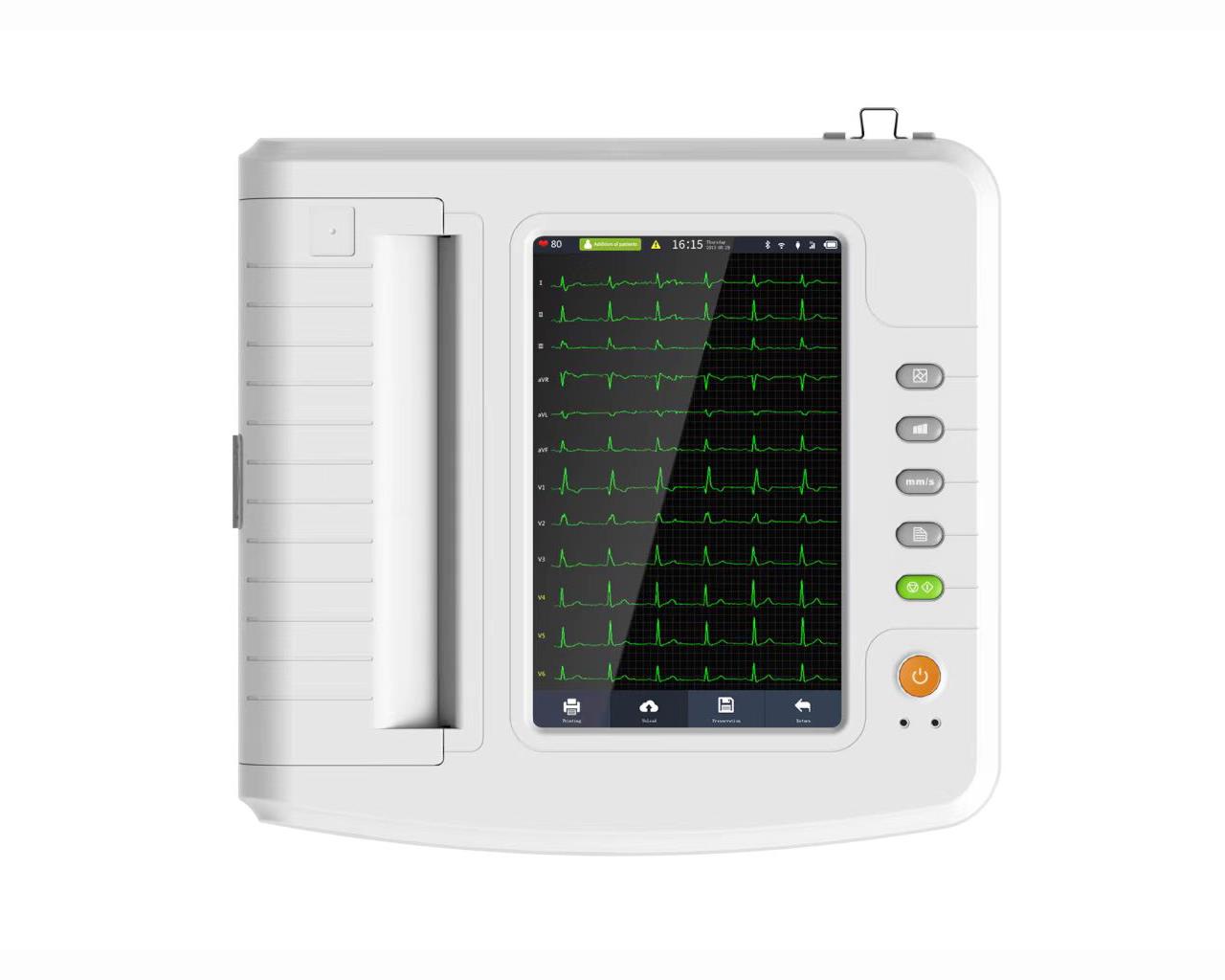

Electrocardiograph Contec 1212G with 12 leads and 3/6/12 channels view and print, PC connection and software.

  • 1280x800 dots, 10.1” high resolution colour LCD display
  • display of 3/6/12-lead ECG to observe abnormal heart rhythm
  • powered by AC/DC or built-in rechargeable lithium battery
  • up to 10-hour standby and continuous print over 3-hours
  • record up to 1,000 ECG waveforms
  • auto-measurement and auto-interpretation of routine ECG provide measurement results and auto-diagnosis conclusion
  • auto-diagnosis conclusion for HR, PR Interval, P Duration, QRS Duration, T Duration, QT/QTc Interval, P/QRS/T Axis, R(V5), S(V1), R(V5)+S(V1) amplitude
  • built-in large memory can store at least 4000 medical records,
  • functions of LAN, USB cable transmission. Automatically upload cases, download reports and print them
  • historical medical records can be exported to other electronic file formats (dat, pdf, xml, bmp, jpeg, png etc.)

Compatible with

• Rechargeable battery for ECG 1212G

• USB cable for Contec 300G, 600G, 1200G, 1212G

Standard equipment

  • 1 lead cable
  • 1 set limb electrodes
  • 1 set chest electrodes
  • 1 Power cord
  • Thermal paper 210 mm x 20 m
  • Rechargeable battery
  • User manual (GB, IT)
  • 1 Ground wire
  • CD software (in GB, FR, IT, ES, PL, RO, SI, TR)



Technical information

  • Input way: Floating and defibrillation protection
  • Lead: standard 12 leads
  • Patient leakage current: <10µA Time constant: =3.2s
  • Input impedance: =2.5 MO CMRR: >105 dB
  • Paper speed: 12.5 mm/s, 25 mm/s, 50 mm/s, ±5%
  • Sensitivity selection: 5, 10, 20 mm/mV, accuracy is ±2%; standard sensitivity: 10 mm/mV ±0.2 mm/mV
  • Auto record: record setup according to auto record format and mode, automatically change leads, automatically measure and analyze
  • Rhythm record: record setup according to rhythm record format and mode, automatically measure and analyze
  • Manual record: record according to manual record format
  • Product safety type: Class I type CF defibrillation-proof function applied part
  • Power supply: rechargeable lithium battery, 14.8 V 5200 mAh
  • Frequency: 100-240 V, 50/60 Hz, =150 VA
  • Size: 34 × 32 × h 8.6 cm
  • Weight: 5 kg

Downloads

EU declaration
User manual
