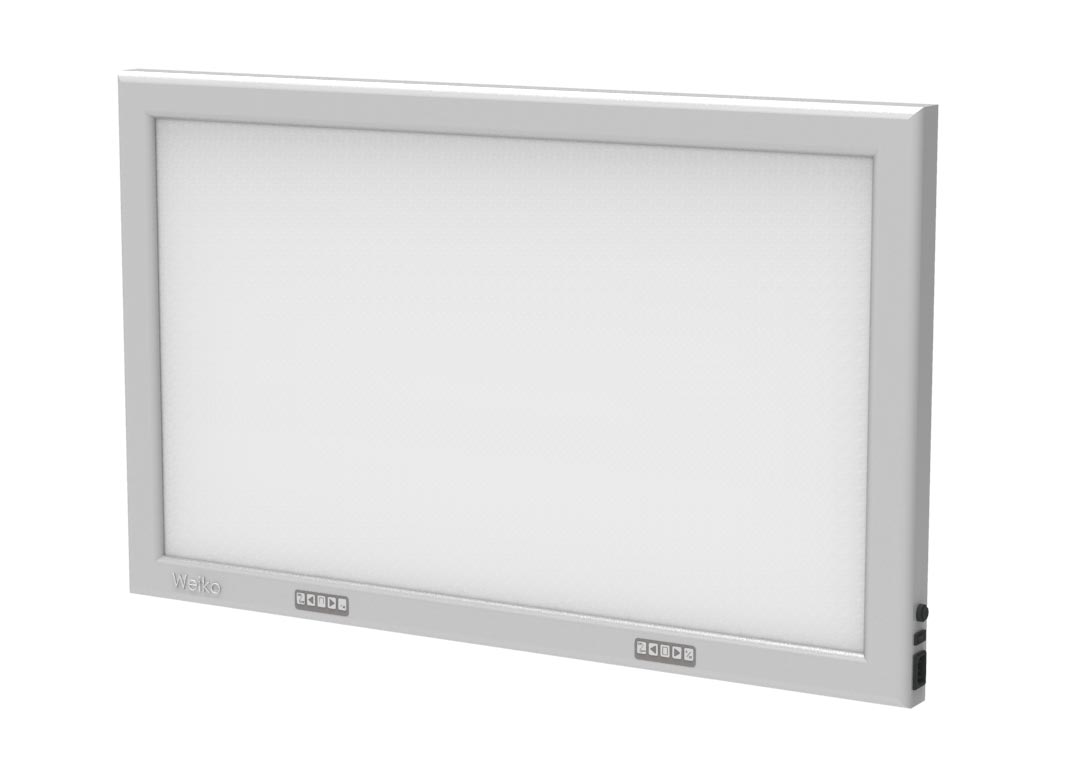

Ultra-flat horizontal LED negativoscope 42 h x 72 cm

Ultra-flat horizontal LED negativoscope 42 h x 72 cm

General information | Technical information | Downloads |
Code:
Brand: WEIKOlink
Unit:
Availability:
heart_plus

878.40 €

(including VAT)
Price without VAT 720.00 €
info General information
assignment Technical information
save_alt Downloads

General information

New generation of ultra-flat negativoscopes with LED technology, the most advanced illumination, with DIMMER, the device to adjust the brightness between 30% and 100%.

Operative advantages:
• Light: the most indicated to read the x-ray slabs (colour temperature: about 7200° K)
• Flicker deleted
• Brightness: 3500 cd/mq
• FAS (Film Automatic Switching): automatic switch on/off when the slab is added

Economic advantages:
• LED's life length: about 80.000 hours!
• Low energy use

Technical information

• LED technology
• LED life: 80.000 hours
• Colour temperature: cold white 7200° K
• Brightness: 3500 cd/m2
• Chassis: antiscratch alluminium
• Negativoscope size: h 42 × 72 cm
• Total size (LxHxD): 82 × 50,5 × 3 cm
• Weight: 8 Kg
• Switch: 1 (ON/OFF)
• Diffuser panel: 2 (thick 3 mm)
• Power supply: 230V; 50/60 Hz
• Components: conform to CEI norms and IMQ, UL e DVE omologation
• Conformity: Low tension 2006/95/CE, electromagnetic compatibility 2004/108/CE. Medical Devis class I
• Made in Italy BIEFFE ITALIA/WEIKO

Downloads

User manual
